TraceInspector

FAST AND PRECISE TRACE VALIDATION

TraceInspector provides precise insights into CAN and Ethernet TSN behavior, enabling early detection of timing deviations and verification of conformance to design-time specifications.

Schedule a demo

See all advantages

TraceInspector

FAST AND PRECISE TRACE VALIDATION

TraceInspector delivers precise visibility into CAN and Ethernet behavior, enabling early detection of timing deviations and alignment with design-time expectations.

Automate network trace analysis, detect deviations, and ensure system robustness.

As embedded networks grow in complexity, understanding their actual behavior becomes essential.

TraceInspector is a complementary tool to Wireshark, providing engineers with trace-based evidence for CAN and Ethernet TSN traffic and checking timing and scheduling against design-time specifications.

TraceInspector makes it possible to detect misbehaving senders or network devices early and to catch issues as software and network configurations evolve during integration.

Schedule demo

Verification & Integration Benefits

Ensure Compliance (OEMs & Suppliers)

Provide trace-backed evidence that each sender node conforms to its defined traffic profile (period, frame size, burstiness).

Reduce Integration Risks (OEMs)

Validate observed system behavior against specifications, quantifying the impact of deviations through simulation.

DERIVE MEASURED TRAFFIC CHARACTERISTICS

Extract traffic profiles from traces to refine design-time assumptions based on actual network behavior.

Secure your integration. Validate your design. Fix issues fast.

Reduce uncertainty before integration begins

Compare observed network behavior against design assumptions and specifications to identify deviations early.

Inspect traces at a glance to validate timing behavior and spot anomalies.

Demonstrate compliance, continuously and reliably

Provide trace-based evidence that sending nodes meet timing and communication requirements.

Request demo

Understand issues. Resolve fast.

Quickly identify message loss and timing deviations with precise trace inspection.

KEY FEATURES

Wide Range Of Support

Supports CAN (ASC), CAN FD, SAE J1939, Ethernet (PCAP), and Automotive Ethernet (SOME/IP, AVTP, PTP).

Model and import

Multiple operating modes—from raw trace inspection to model-based verification—to fit diverse design and validation workflows.

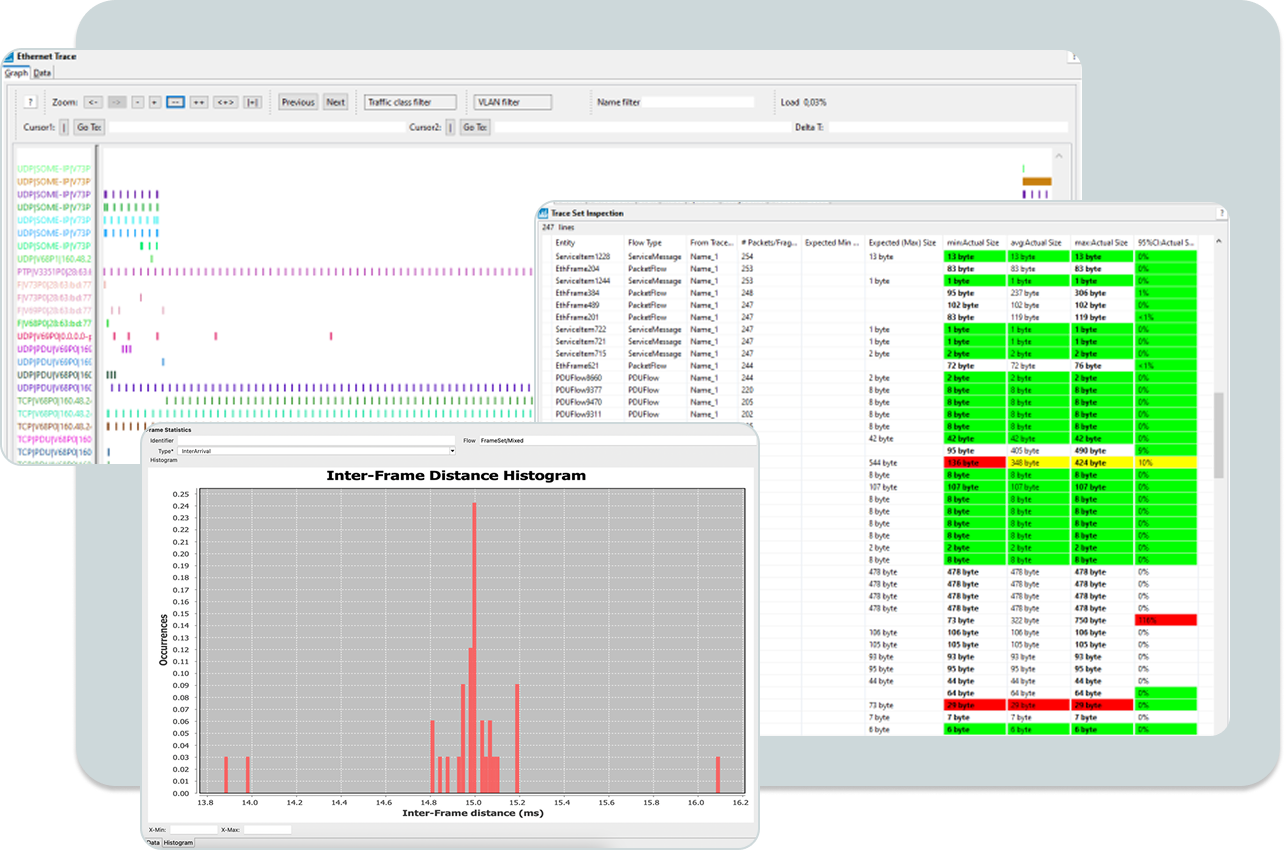

Gantt charts and
histograms

Detailed visualizations (Gantt charts and histograms) for timing and traffic analysis.

Automatic detection

Automatically detects specification violations, abnormal traffic patterns, and missing or duplicate frames.

Easy update Of models

Update traffic models directly from recorded traces with the interactive ComPatternsConfig editor.

Cross-platform support

Runs on Windows, Linux, and macOS.

Statistical analysis

Derives traffic characteristics such as frame size, period/inter-arrival time, burstiness, and mixed traffic types.

Direct translation

Transforms inspection results into realistic traffic models for simulation and what-if analysis.

Plugins

Extensible plugin framework for custom analyses and additional functionality.

COMING SOON

UPCOMING FEATURE

Multi-trace delays estimation: Estimate and visualize delay Metrics that require multiple traces

Switching delays: Estimate the latency introduced by a switch

Local delays: Compute local per-hop delays

Point-to-point delays: Measure the time between any two trace points on a path

End-to-end delays: compute end-to-end delay from the sender side to the receiver side

Do you have any questions or want a demo?

From early evaluation to in-depth technical discussions, our team is here to answer your questions and provide a demo tailored to your needs.

Request demo
